Pretreatment system (quartz sand filter, activated carbon filter, ion exchanger, microporous filter)

Membrane separation system (ultrafilter, nanofilter, reverse osmosis unit), electrodialysis equipment

Sterilization equipment (ultraviolet equipment, ozone equipment), etc.

Product range

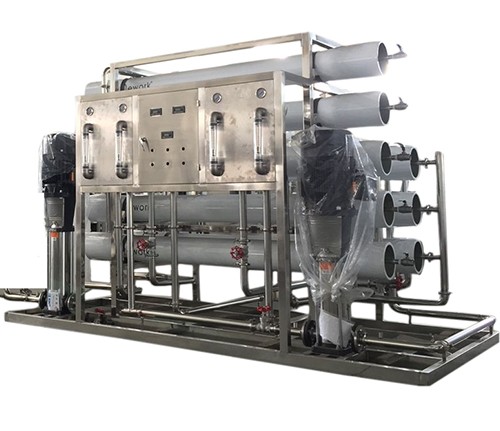

Reverse osmosis (RO) equipment series

Filter equipment series

Membrane products and filter elements

Electrodialysis, ion exchanger, ozone sterilization system

Application range:

Drinking pure water, mineral water

Food and beverage water

Boiler feed water, industrial wastewater treatment

Pharmaceutical, electronic industry high-purity water

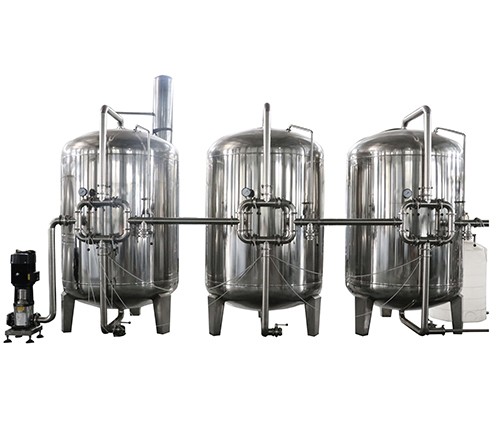

Quartz sand filter, activated carbon filter, sodium ion filter, precision filter

Quartz sand filter, activated carbon filter, sodium ion exchanger, precision filter are pretreatment equipment used in pure water purification equipment, with different functions, filtering different impurities and bacteria, etc.

The specific diameter of the tank can be made according to the customer's hourly production requirements.

Quartz sand filter, activated carbon filter, sodium ion exchanger, precision filter are all made of food-grade high-quality stainless steel 304, which is hygienic, beautiful and durable.

Quartz sand filter

The filter with multiple filter layers is mainly used to remove sediment, rust, colloids, suspended matter and other particles above 20um in the raw water.

Manual valve control or fully automatic controller can be used for backwashing, forward flushing and other operations. Ensure the water quality of the equipment and extend the service life of the equipment.

Activated carbon filter

The system uses fruit shell activated carbon filter. Activated carbon can not only adsorb electrolyte ions, but also perform ion exchange adsorption.

Activated carbon adsorption can also reduce the oxygen consumption (COD) of potassium permanganate from 15mg/L (O2) to 2~7mg/L (O2).

In addition, due to the increase in the concentration of adsorbed replication on the surface due to adsorption, it also plays a catalytic role, removes pigments, odors, a large amount of biochemical organic matter in water, reduces the residual chlorine value and pesticide pollutants in water, and removes trihalides (THM) and other pollutants in water.

Manual valve control or fully automatic controller can be used for backwashing, forward flushing and other operations. Ensure the water quality of the equipment and extend the service life of the equipment.

Sodium ion filter

Height: 2000mm

Diameter: 800mm

Material: SUS304 stainless steel (food grade) - Made in China

Medium: strong acid exchange resin

Processing capacity: 20m³/h

Components: water transmission, water collection, pressure gauge, valve material, strong acid exchange resin, dissolution measurement, valve, etc.

Use: Mainly used to remove calcium and magnesium ions in water

Reverse osmosis, also known as reverse osmosis (RO), uses a certain pressure to separate the solvent in the solution through the reverse osmosis membrane. Because it is opposite to the direction of natural osmosis, it is called reverse osmosis.

According to the different osmotic pressures of various materials, the reverse osmosis method that is greater than the osmotic pressure can achieve the purpose of separation, extraction, purification and concentration.
